polarbar





choosefile   example


















add color





极坐标柱状图英文说明文档

Function: Same as the regular histogram, used to display the statistical results of data distribution.



Input:

1. The file must be a tab-separated .txt format file with a header. The name of the table is composed of letters, numbers, and underscores, and no suffix name is allowed.

2. The file contains two columns, the first column is the group name, and the second column is the statistical result of each grouping data.

Example:

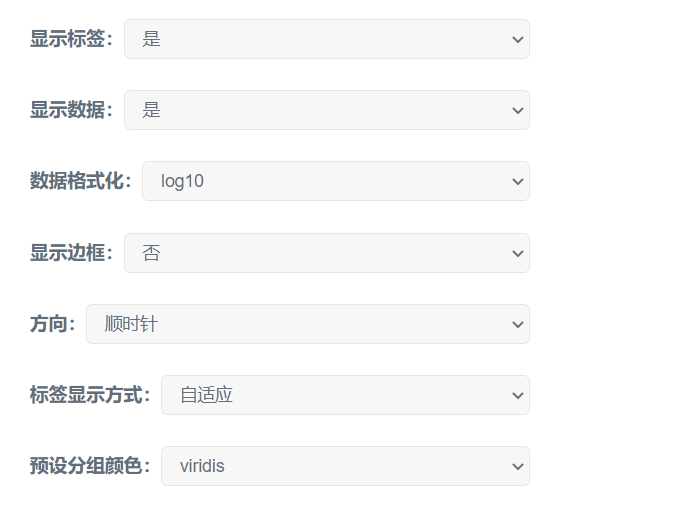

Parameter:

1. Picture title: custom

2. Label: display/not display

3. Data: display/not display

4. Data formatting: do not process /log2/log10 (when the data is too large, you can choose to use logarithmic formatting, and the graphic display is better)

5. Border: display/not display

6. Direction: clockwise/counterclockwise (data are arranged clockwise or counterclockwise from small to large)

7. Label display mode: adaptive (the last 1/4 label is displayed inside the column)/outside the column

8. Preset group colors: There are three types of presets, and they can also be customized



Output: After the analysis is completed, a compressed folder of drawing results will be provided for download, which contains the result images in PDF and PNG format.

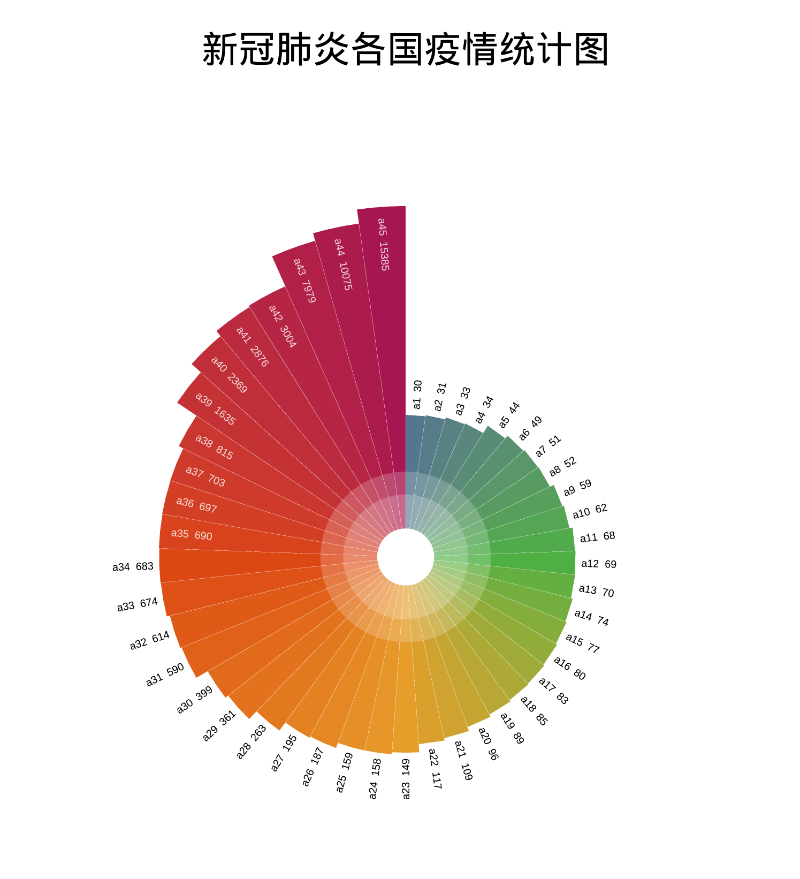

Interpretation of the results: different colors represent different groups. The length of the column indicates the size of the grouped data statistics. The longer the column, the larger the data, and vice versa. The grouping and data label display are displayed as required. The example picture shows the label in an adaptive form. The left half circle data label is after the group label, the right half circle data label is before the group label, and the last 1/4 circle label is displayed in the column.

极坐标柱状图英文例子说明

Input: .txt file with header, the first column is the country name code, the second column is the statistics of COVID-19 in various countries

 示例文件

Parameter:

1. Picture caption: Statistics of COVID-19 in various countries

2. Label: Display

3. Data: Display

4. Data

5. Border: display

6. Drawing direction: clockwise

7. Label display: inside the column

8. Preset group color: rainbow



Output:

The result file compression package contains the result images in PDF and PNG format, as well as the source files of the OS platform.

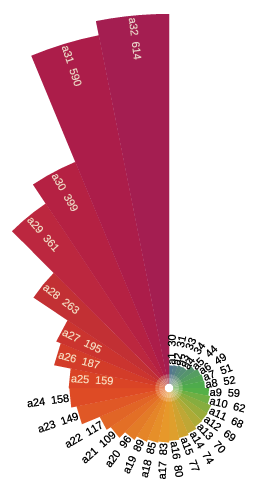

Interpretation of the results: different colors represent different countries. The length of the column indicates the number of people in each country. The longer the column, the more the number of people infected, and vice versa.
